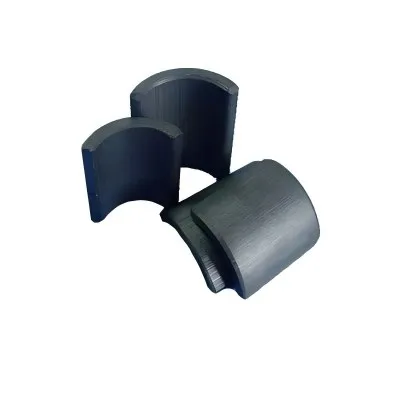

Ferrite Segment Magnet C5

Ferrite Segment Magnet C5

The Ferrite Segment Magnet C5 is an arc-shaped ceramic magnet designed to fit precisely into motor rotors and circular magnetic assemblies, delivering stable and uniform magnetic field distribution. Made from sintered ferrite materials, it offers reliable magnetic performance, strong resistance to demagnetization, and excellent corrosion resistance without the need for coating. Its segment (tile) structure improves magnetic efficiency and reduces energy loss in motors, making it widely used in DC motors, generators, and industrial rotating equipment. As a cost-effective solution, it is especially suitable for high-volume production and OEM projects requiring consistent quality and long-term supply
Send Inquiry
Technical Specifications
Parameter Specification
Material Type Ferrite (Ceramic)
Grade C5
Shape Segment / Arc / Tile
Color Dark Grey / Black
Density ~4.8 – 5.0 g/cm³
Hardness High (Brittle Material)
Surface Treatment None (Natural Corrosion Resistance)
Working Temperature Up to 250°C
Curie Temperature Approx. 450°C
Magnetization Direction Radial / Diameter / Thickness (Customizable)
Ferrite magnet for ventilation motor
Key Advantages

Cost-Effective Solution for High-Volume Production
The Ferrite Segment Magnet C5 offers a strong balance between performance and cost, making it a practical choice for OEM projects and bulk procurement. It is widely used in industries that require stable supply and controlled production costs.


Stable Magnetic Performance

With reliable magnetic properties and good resistance to demagnetization, this magnet ensures consistent performance in motor assemblies, generators, and magnetic systems, supporting long-term operational stability.

Excellent Corrosion Resistance
Unlike many other magnet types, ferrite magnets do not require additional coating, providing natural resistance to corrosion. This makes them suitable for use in humid or challenging industrial environments.

FAQ



What are Ferrite Segment Magnets C5 mainly used for?
They are primarily used in DC motors, automotive motors, generators, and magnetic assemblies, where arc-shaped magnets are required to fit rotor structures and provide stable magnetic fields.



Why choose C5 grade ferrite magnets?
C5 offers a good balance of magnetic performance and cost, making it suitable for mass production and OEM applications that require consistent quality and cost control.



Can the dimensions be customized for my motor design?
Yes, we support full customization including inner/outer radius, angle, thickness, and tolerances, ensuring precise fit for your rotor or magnetic assembly.



What magnetization directions are available?
We provide multiple options such as radial, axial, and multi-pole magnetization, depending on your motor or application requirements.
