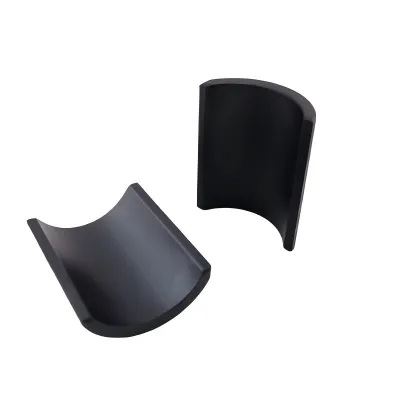

Ferrite Arc Magnet Y30

Ferrite Arc Magnet Y30

Y30 Ferrite Arc Magnets are high-performance anisotropic sintered ceramic permanent magnets manufactured via powder metallurgy and wet-press molding. Featuring stable magnetic properties, excellent heat resistance, strong corrosion resistance, and outstanding cost-effectiveness, Y30 arc ferrite magnets are widely used in permanent magnet DC motors, brushless motors, generators, speakers, and automotive & home appliance drive systems. Our arc segments support precise radial magnetization, uniform magnetic field distribution, and tight dimensional tolerance to match rotor/stator assembly for high-efficiency motor design.
Send Inquiry



Key Features

  • Anisotropic sintered structure for strong and stable magnetism
  • Excellent corrosion resistance, no coating needed, no rust
  • High demagnetization resistance for long-term performance
  • Wide working temperature: -40℃ to +250℃
  • Brittle but hard ceramic texture, high dimensional stability
  • Inexpensive and reliable for mass industrial applications
  • Custom arc, radius, thickness and length available


Magnetic Properties

  • Remanence Br: 380–400 mT
  • Coercivity bHc: ≥235 kA/m
  • Intrinsic Coercivity iHc: ≥310 kA/m
  • Max. Energy Product (BH)max: 28–31 kJ/m³
  • Density: 4.8–4.9 g/cm³
  • Working Temperature: -40℃ ~ +250℃


Production Process
Our Y30 ferrite arc magnets are produced by wet-press anisotropic sintering technology to ensure high magnetic orientation and uniform magnetic field. We also support dry-press isotropic production for cost-sensitive projects.
Strict quality control is applied from raw material, pressing, sintering, grinding to magnetization, ensuring stable performance and consistent dimensions.


Applications

  • Automotive motors: wiper motor, window motor, seat motor, fuel pump, starter motor
  • Home appliance motors: air conditioner, refrigerator, washing machine, fan
  • Industrial motors: water pump, power tool, generator, small drive motor
  • BLDC / DC brushless motors
  • Rotor and stator assembly
  • Speakers and audio magnetic components
  • Magnetic sensors, couplings, magnetic therapy devices


Customization Service
We provide full customization for Y30 ferrite arc magnets:
Custom arc radius, arc length, thickness, width
Radial magnetization, axial magnetization, multi-pole magnetization
Tolerance: standard ±0.1 mm, high precision ±0.05 mm
OEM & ODM welcomed
Small MOQ & mass production supported
