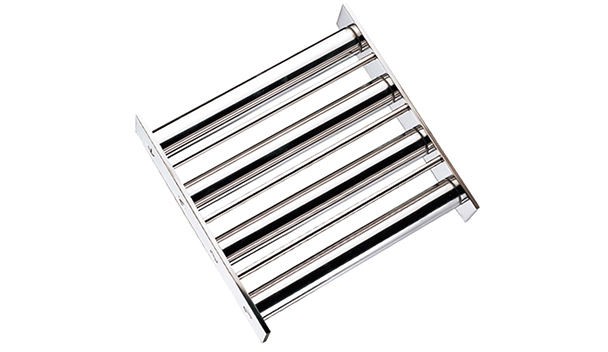

Square Magnetic Grate Separator

The Square Magnetic Grate Separator is a high-performance magnetic solution designed to remove ferrous contaminants from bulk materials like powders, granules, and grains. Equipped with strong magnetic bars arranged in a square grid inside a stainless steel frame, it efficiently captures iron particles and metal fragments. Made from corrosion-resistant SS304 or SS316 stainless steel, it provides reliable and durable performance in industries such as food processing, pharmaceuticals, and chemicals, helping ensure material purity and protect downstream equipment.

Custom Solutions

Size & Design Customization

Tailor the frame size and magnetic bar layout to meet your processing system's requirements.

Magnetic Strength

Choose from a range of magnetic strengths, depending on the application and material type.

Surface Finish

Available in polished, brushed, or sandblasted finishes to meet specific industry standards.

Special Configurations

Customize the number of magnetic layers, bar spacing, and other parameters for optimal performance.

Product Specifications

Parameter	Specification
Material	SS304 / SS316 Stainless Steel
Magnetic Strength	8,000 – 15,000 Gauss (customizable)
Magnet Type	NdFeB (Rare Earth) / Ferrite
Bar Diameter	16mm – 32mm (customizable)
Frame Design	Square Grid
Operating Temperature	≤ 80°C (Custom High-Temp Available)
Application	Powders, Granules, Grains
Installation	Hoppers, Chutes, Pipelines

FAQ

How can the Square Magnetic Grate improve my production efficiency?
Our Square Magnetic Grate helps remove iron contaminants from bulk materials, ensuring cleaner products and protecting sensitive equipment downstream. By removing metal particles early in the production process, it reduces wear and tear on machinery, minimizes equipment downtime, and enhances the overall efficiency of your production line.

What industries can benefit from using this magnetic separator?
The Square Magnetic Grate Separator is designed for industries where maintaining product purity and protecting equipment is crucial. It is widely used in food processing, pharmaceuticals, chemicals, plastics, and recycling to ensure the removal of ferrous contamination from bulk materials, improving the quality of the final product and reducing production costs.

Can I customize the Magnetic Grate Separator for my specific requirements?
Yes, we offer complete customization options. You can adjust the magnetic strength, size, bar spacing, and frame design to suit your specific processing system. Whether you need a custom layout for your hopper or a unique bar configuration, we provide tailored solutions to meet your exact needs and improve your material handling processes.
