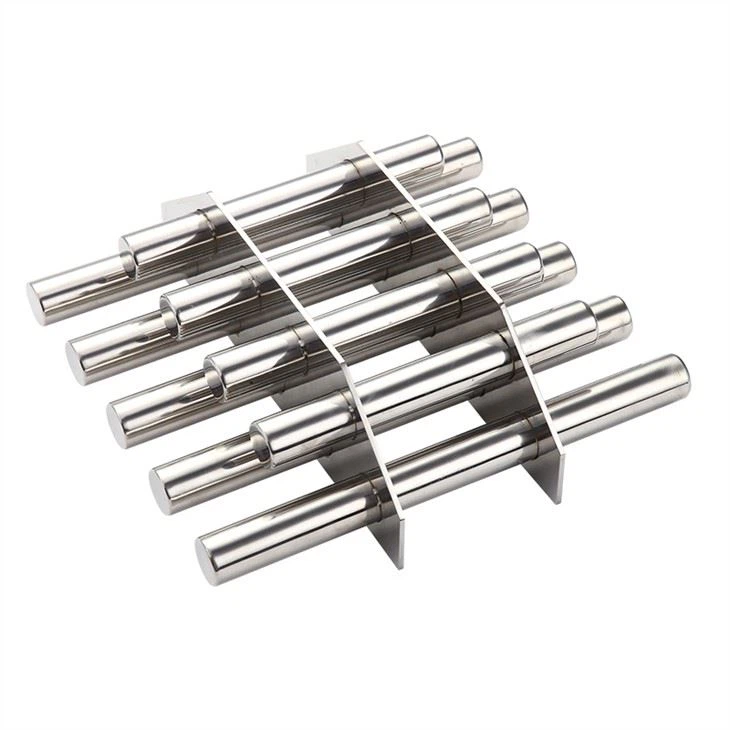

Rectangle Magnetic Grate

Rectangle Magnetic Grate is a permanent magnetic separator designed to remove ferrous contaminants from dry bulk materials such as powders, granules, and grains. It is typically constructed with high-strength magnetic bars arranged in a rectangular stainless-steel frame, allowing materials to flow through the grid while iron particles are captured by the strong magnetic field. Installed in hoppers, chutes, or pipelines, it helps improve product purity and protects downstream equipment in industries such as food processing, plastics, chemicals, and pharmaceuticals.

Custom Solutions

Custom Size and Frame Design

Rectangle magnetic grates can be manufactured in various sizes and shapes to fit hoppers, chutes, pipelines, and material handling systems. Custom frame dimensions are available based on drawings or equipment specifications.

Magnetic Strength Options

Different magnetic intensity levels can be provided according to separation requirements, typically ranging from 2000 GS to 12000+ GS or higher for rare-earth magnetic systems.

Cleaning Structure Options

Customers can choose different cleaning structures, including:

Standard manual cleaning type
Easy-clean magnetic grate
Multi-layer magnetic grid design
Customized magnetic bar spacing

Technical Parameters

Parameter	Specification
Magnetic Strength	8,000 – 15,000 Gauss
Magnet Type	Rare Earth Neodymium (NdFeB) / Ferrite
Magnetic Bar Diameter	16 mm – 32 mm (common: 25 mm)
Frame Material	Stainless Steel 304 / 316L
Structure	Magnetic rods arranged in grid frame
Cleaning Method	Manual cleaning / Easy-clean type
Operating Temperature	Standard ≤ 80°C, High-temp ≤ 300°C
Installation	Hopper, chute, pipeline, drawer system
Application Materials	Powders, granules, bulk solids

FAQ

What materials can a magnetic grate remove?
Magnetic grates are designed to capture ferrous contaminants such as iron filings, metal fragments, bolts, and tramp iron from powders, granules, and bulk materials during processing.

Where are magnetic grates typically installed?
They are commonly installed in hoppers, chutes, pipelines, feeders, and material transfer points where bulk materials flow through the magnetic grid.

What magnetic strength should I choose?
The required magnetic strength depends on the material type and particle size. For fine powder or high-purity applications, high-intensity rare-earth magnets up to 12000–15000 Gauss are typically recommended.

Can the magnetic grate be customized for my equipment?
Yes. Manufacturers usually provide custom sizes, magnetic bar spacing, frame structures, and connection types to fit existing production systems.
