Magnetic Grate Types and Structural Options
Magnetic grates, also known as magnetic grills, grate magnets, or hopper magnets, are available in several structural designs to meet different material handling and processing requirements. Depending on the production process and material flow characteristics, the following magnetic grate configurations are commonly used in industrial applications:

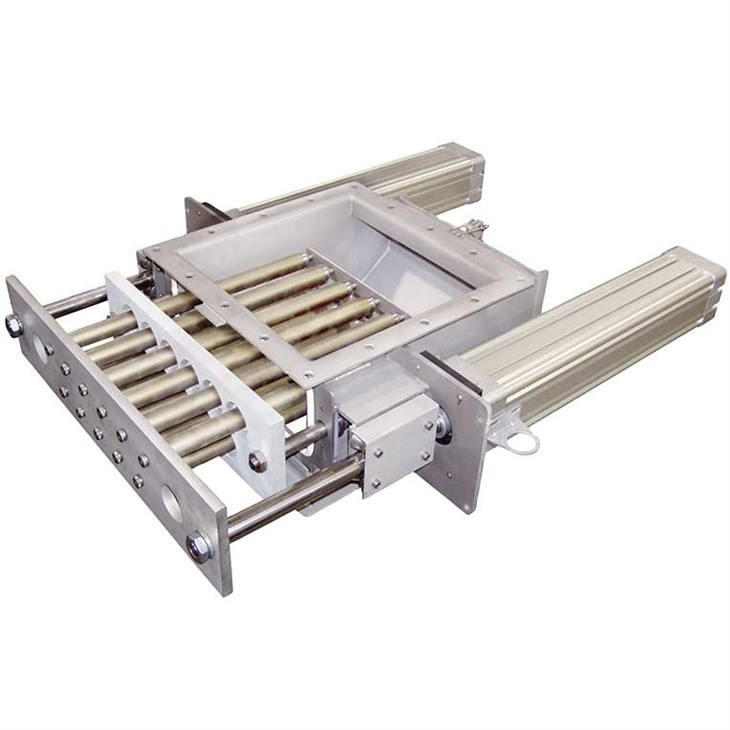

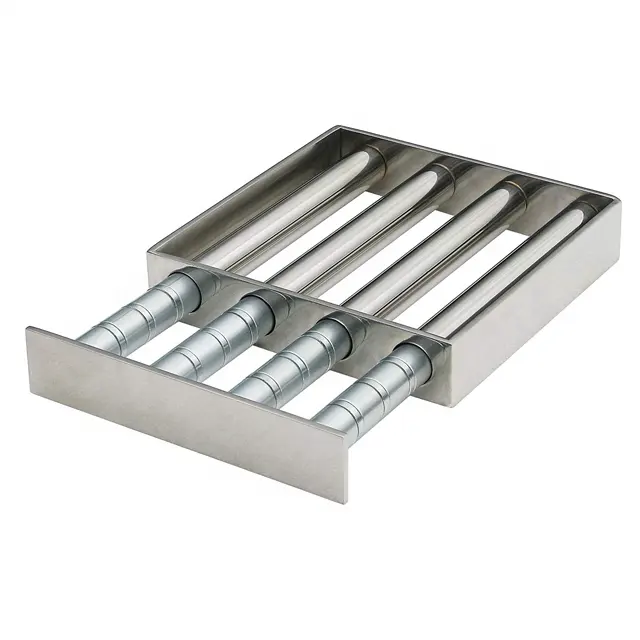

- Drawer Type Magnetic Grate
The drawer-type magnetic grate is installed inside a stainless steel frame and can be easily connected to production equipment such as hoppers or chutes. This design allows operators to pull out the magnetic grid like a drawer for convenient cleaning and maintenance. It is widely used in powder and granular material processing where regular removal of metal contaminants is required.
- Pipeline Magnetic Separator
For liquid, powder, or slurry transport systems, the magnetic grid can be installed inside a stainless steel pipeline housing, forming a fluid pipeline magnetic separator. The unit is typically connected through flanges, quick connectors, or threaded pipe fittings. This structure ensures smooth material flow while effectively capturing ferrous particles, without significantly affecting the pipeline's flow rate.
- Rotary Magnetic Grate Separator
The rotary magnetic grate is equipped with a geared motor that drives the magnetic grid to rotate during operation. This design helps prevent material bridging and blockage when processing powders with poor flowability. The rotation speed can be adjusted according to the operating conditions to maintain efficient separation without interrupting material flow.
- Easy-Clean Magnetic Grate
Easy-clean magnetic grates are commonly designed with stainless steel sleeves covering the magnetic rods. During cleaning, the magnetic rods can be pulled out from the sleeves, allowing the captured metal particles to fall off easily. This structure greatly simplifies maintenance and reduces downtime in industrial production environments.
We provide comprehensive one-stop solutions for Drawer Magnetic Grates, covering product design, customization, manufacturing, quality inspection, and delivery. Based on the customer's equipment structure and material processing requirements, our team can customize housing size, magnetic strength, magnetic bar configuration, and connection types to ensure seamless integration into existing production lines. With strict quality control and reliable manufacturing capabilities, we help industrial customers obtain efficient and stable magnetic separation solutions from a single supplier.
FAQ
What is a Magnetic Grate used for?
A Magnetic Drawer is used to remove ferrous contaminants such as iron particles, metal fragments, and tramp iron from dry bulk materials. It is commonly installed in processing lines handling powders, granules, and other loose materials to improve product purity and protect downstream equipment.
How does a Magnetic Drawers work?
Materials flow through the housing and pass across multiple rows of high-strength magnetic bars arranged in staggered layers. As the material moves through the magnetic field, ferrous particles are attracted to the magnetic tubes and separated from the product stream.
What magnetic strength is available for drawer magnetic separators?
Most Magnetic Drawers use high-performance rare-earth magnetic bars with magnetic strength typically ranging from 8,000 to 14,000 Gauss, depending on the separation requirements and material type.
