Segment Design for Magnetic Assemblies
Individual Segment Construction

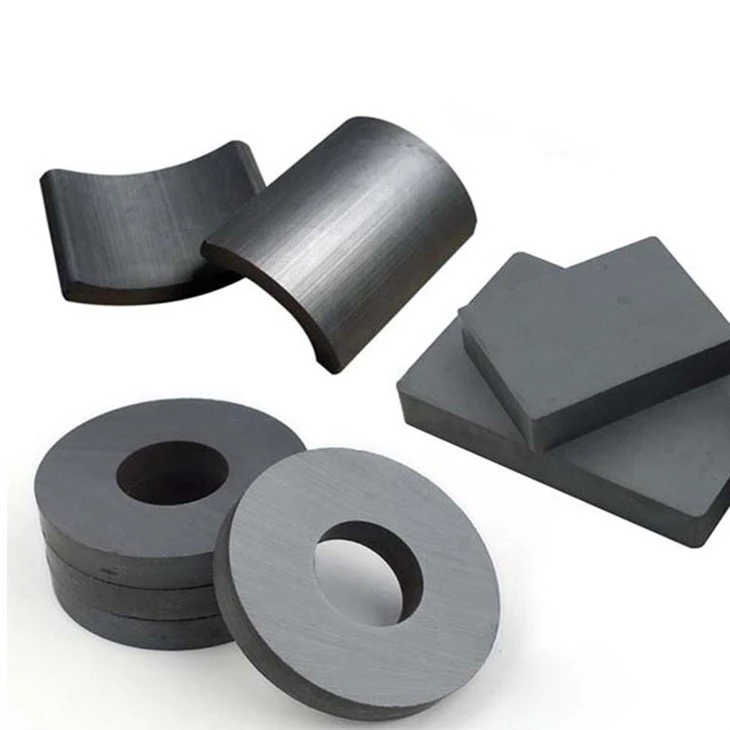

Each Y30 ferrite magnet is manufactured as an individual segment, allowing flexible integration into magnetic assemblies of various sizes and configurations. The segmented design simplifies handling, positioning, and replacement during production.
Flexible Circular Assembly
Multiple segments can be assembled into a complete circular magnetic structure to match different rotor diameters and magnetic circuit designs. This modular approach provides greater flexibility than one-piece ring magnets for many industrial applications.
Adaptable to Different Pole Configurations
Segment dimensions and quantities can be adjusted to accommodate various pole numbers and magnetic layouts. This allows engineers to optimize magnetic assembly designs according to motor or generator performance requirements.
Simplified Rotor Manufacturing
Using segmented magnets helps streamline rotor assembly by improving installation efficiency and reducing manufacturing complexity. Individual segments can be accurately positioned to achieve consistent magnetic alignment.
Y30 Material Performance
Stable Magnetic Properties
Y30 ferrite material provides reliable magnetic characteristics, helping maintain consistent performance throughout long-term industrial operation.
High Resistance to Demagnetization
The material offers high coercive force, allowing the magnet to retain its magnetic properties under normal operating conditions and repeated magnetic cycles.
Corrosion-Resistant Ceramic Structure
Manufactured through high-temperature sintering, Y30 ferrite forms a dense ceramic structure that naturally resists corrosion and oxidation without requiring additional surface coating.
Cost-Effective Magnetic Material
Compared with many rare earth magnets, Y30 ferrite provides an economical solution for applications requiring stable magnetic performance and large-volume production.
FAQ
What should be considered when selecting a Y30 ferrite grade?
Selection is typically based on the required magnetic performance, operating conditions, rotor design, and cost objectives. Y30 is widely used where stable magnetic properties and economical production are important.
Can segmented magnets be supplied as matched sets?
Yes. Segmented magnets can be manufactured and supplied as matched sets with controlled dimensions and magnetic characteristics to simplify rotor assembly and improve production consistency.
Are custom segment quantities available for different rotor designs?
Yes. The number of segments, arc geometry, and dimensions can be adjusted according to the rotor diameter, pole configuration, and assembly requirements provided by the customer.
